Model: 114110048
Manufacturer: Seeed Technology Co., Ltd
Description: Carrier Board Interface NVIDIA Jetson Nano, Jetson TX2 NX, Jetson Xavier NX Platform Evaluation Expansion Board

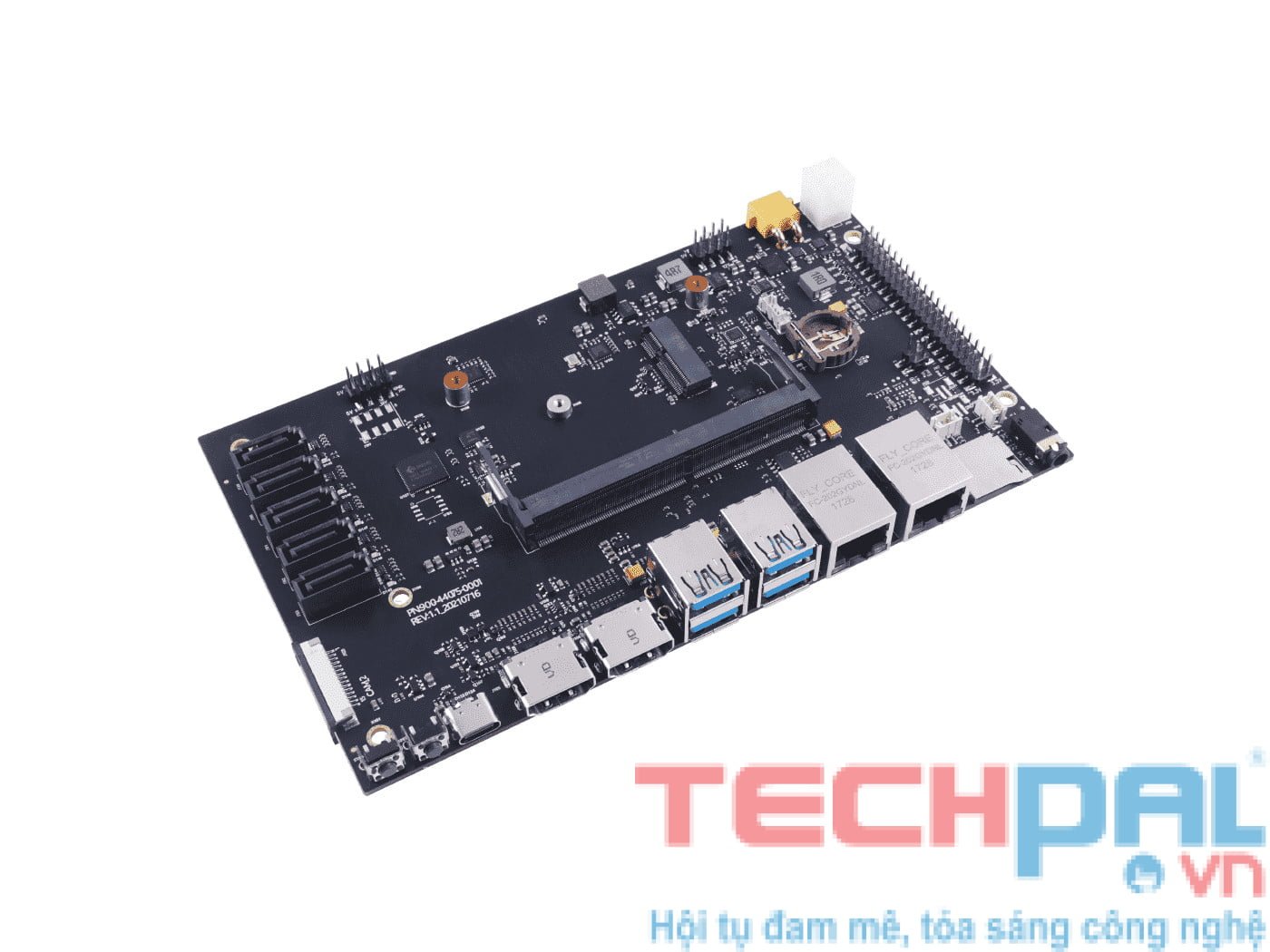

Seeed Studio A205 Carrier Board is an interface-rich, NVIDIA Jetson Nano / Xavier NX/ TX2 NX compatible carrier board. The A205 board features an HDMI 2.0, Gigabit Ethernet, USB3.0, USB 2.0 (W / OTG function) M.2 key E, Wi-Fi® / BLUETOOTH®, SATA, CSI camera, RS232, SD card, CAN, PIO, I2C, and I2S fans. The A205 is ideal for environments with strict environmental requirements and complicated real-time vision computation.
Platform: NVIDIA Jetson Nano, Jetson TX2 NX, Jetson Xavier NX
Features:
– Rich peripheral interfaces and complete features
– Up to 6 CSI camera connection allowance
– 5 SATA allows connection to multiple hard drives
– Equipped with an anti-fall aviation plug that supports high currents
– All-in-one solution with up to 3 fans interfaces for better heat dissipation consideration
– Certificate: FCC, CE, RoHS
Type: Interface
Interface Type: USB
Ethernet Controller Type: RJ45
Ethernet Speed: 10Mbps/100Mbps/1000Mbps
Audio Interfaces: 1@Audio Jack
Number of Ethernet Ports: 2
Number of Slots: 2
UART: 1
I2C: 2
SPI: 2
USB: 5
SATA: 5
GPIO: 2
Operating Temperature: -25°C ~ 80°C
