Model: 26505-ESL-XL5-UV
Manufacturer: Aven Tools
Description: Mighty Vue™ Pro 5 Diopter [2.25x] Magnifying Lamp With UV And White LEDs -ESD Safe

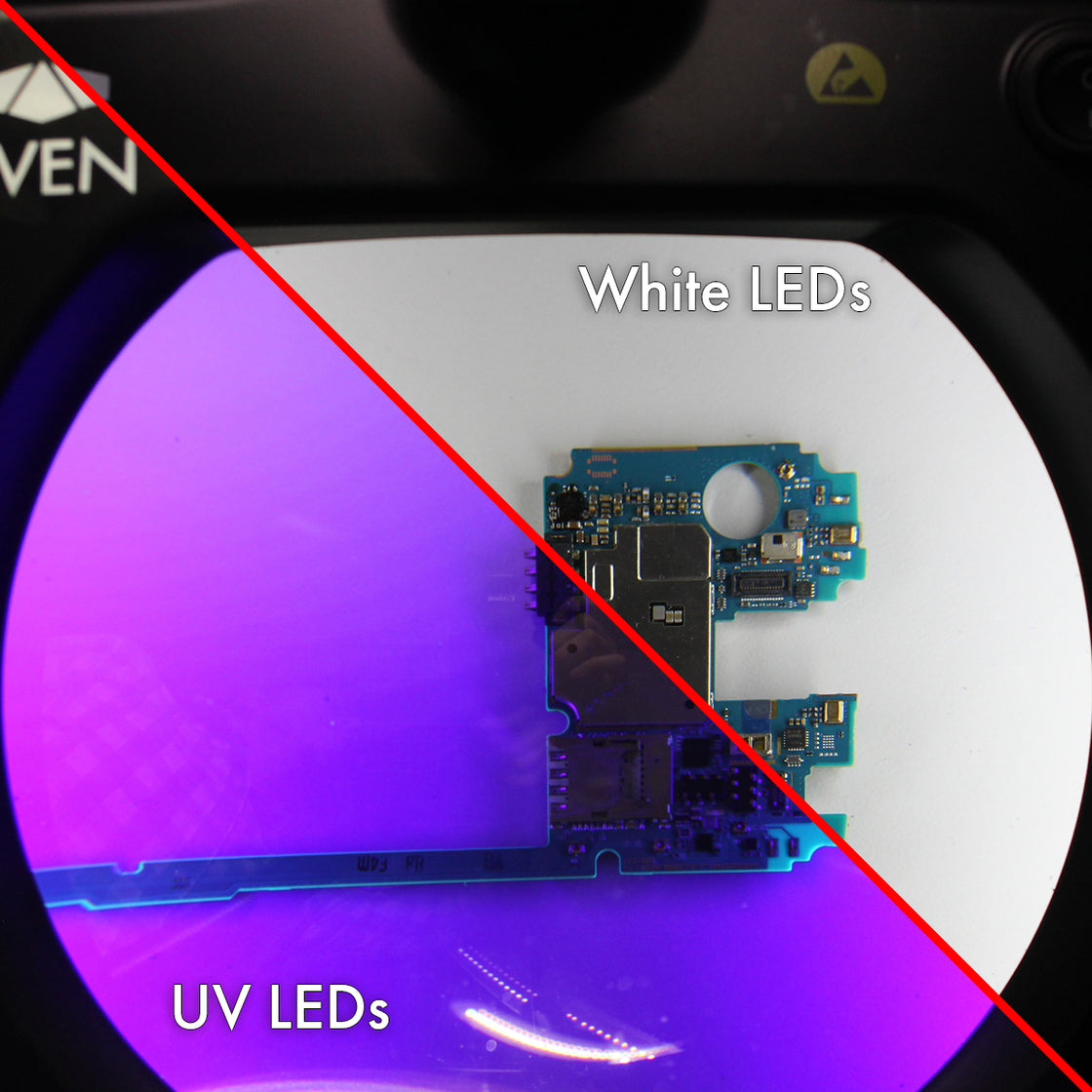

This model features 48 adjustable white LEDs as well as 30 UV LEDs operating at 400nm. The extra-wide 7.5″ x 6.2″ lens provides a large viewing area with a magnification of 2.25x. Blacklight (320-400 nm) does not represent a hazard under normal use conditions.
Features:
– Features both standard white LEDs and UV LEDs
– 48 white LEDs, 30 UV LEDs (400nm)
– 7.5 x 6.2” extra-wide glass lens for crystal-clear viewing
– 360 swivel lamp head. Inspect from any angle.
– Touch-sensitive brightness control
– Built-in handle for easy positioning
– Adjustment knob locks lamp head and arm in position
– Adjustable spring balanced arm, free of pinching hazards
– ESD Safe
– Includes heavy-duty table clamp and power adapter
– Blacklight (320-400 nm) does not represent a hazard under normal use conditions.




26505-ESL-XL5-UV_ProductSheet
Magnifying_Lamp_SelectionGuide_Web.pdf
Lamp/Magnifier Type: Lamp, Magnifier
Mounting Type: Edge Clamp
Bulb: LED, White (48), UV (30)
Color: Black
Expected LED life: Minimum 20,000 Hours
LED Wattage: 1-10W
Voltage: 100 ~ 240V
Lumen: Max 1100lm
Lens Style/Size: 5 Diopter (2.25x), 7.5″ L x 6.2″ W (190.50 x 157.48mm)
Arm: 36.0″ (914.4mm)
Weight: 8.25lb
