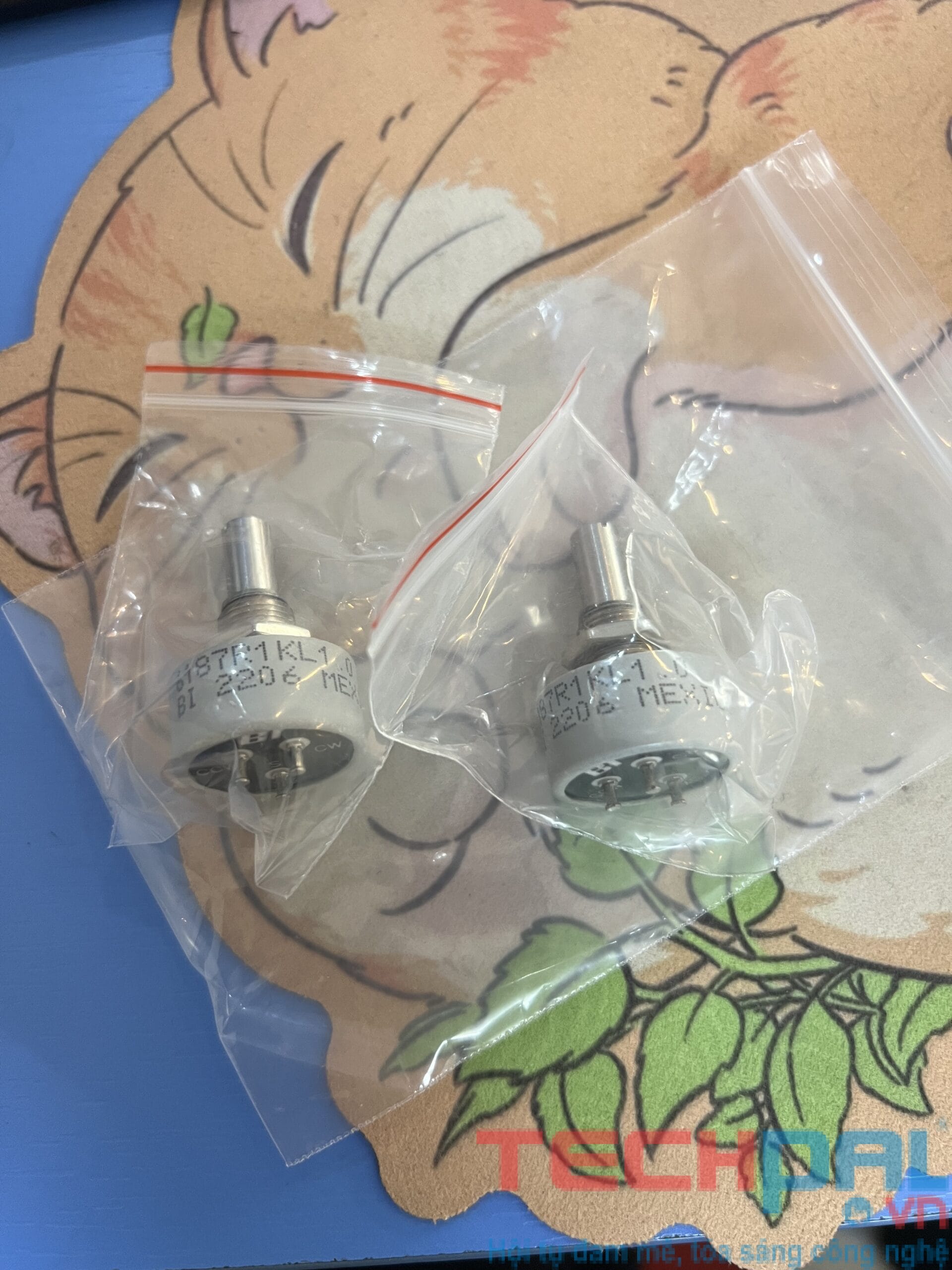

Model: 6187R1KL1.0
Manufacturer: TT Electronics/BI
Description: Rotary Potentiometer, Without Stop, 1 kohm, 1 Turns, Linear, 1 W, ± 10%, 6180 Series
The 6180 series 7/8-inch single-turn conductive plastic Precision Potentiometer/Position Sensor offers essentially infinite resolution.
Features:
– Without stop feature
– ±0.5% Minimum practical independent linearity
– 400VDC Maximum, not to exceed power rating
– 750Vrms Dielectric strength
– IP50 and IP66 Ingress protection rating (IP code)
Type: Precision
Element Type: Conductive Plastic
Adjustment Type: Screwdriver Slot
Mounting Style: Panel Mount
Termination Style: Solder Turret
Shaft Type: Smooth / Slotted
Shaft Diameter: 6.342mm
Shaft Length: 20.7mm
Taper: Linear
Orientation: Vertical
Number of Gangs: 1 Gang
Number of Turns: 1 Turn
Resistance: 1 kOhms
Power Rating: 1W
Voltage Rating: 400VDC
Tolerance: 10%
Temperature Coefficient: – 400 PPM / C
Operating Temperature: -65°C ~ 125°C
Product Length: 36.4mm
