Model: 91-FMX-004
Manufacturer: Simco-Ion

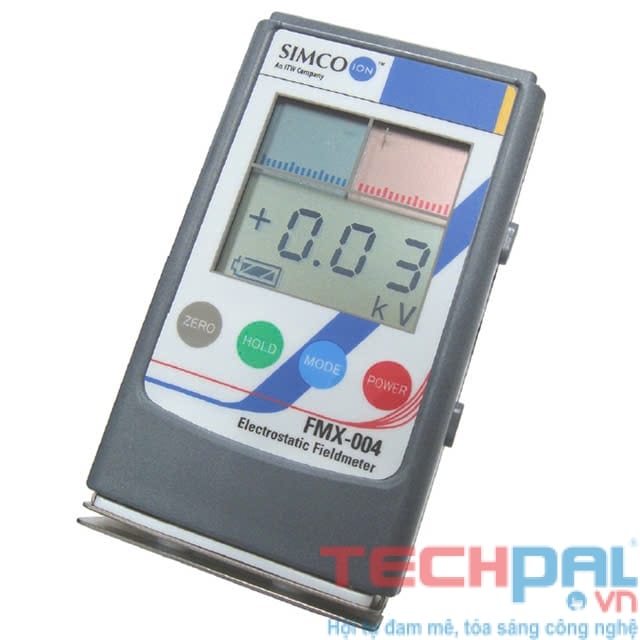

Description: The FMX-004 fieldmeter is a compact electrostatic fieldmeter used for locating and measuring static charges. Its pocket size and three-button operation makes it convenient and easy to use.
Features and Benefits:
– Lightweight, compact design
– Range light assures accurate and repeatable measurements
– Automatic range switching up to ±30 kV (30,000V) at a distance of 1″
– Digital and bar graph display with +/- indicators
– Automatic power off with inactivity
The FMX-004 also offers an optional cable and bracket kit for Analog output. This feature allows you to extract and monitor your data. The Analog output bracket enables the fieldmeter to be mounted in order to collect continuous reading. The Analog signal can be used with a PLC, data acquisition card, data logger, chart reader, etc.
Type: Static Meter
Usage: Measuring Static Voltages
Power Supply Type: 9V Battery
Dimensions: 4 7/8″ L x 2 7/8″ W x 1″ H (6 oz)
