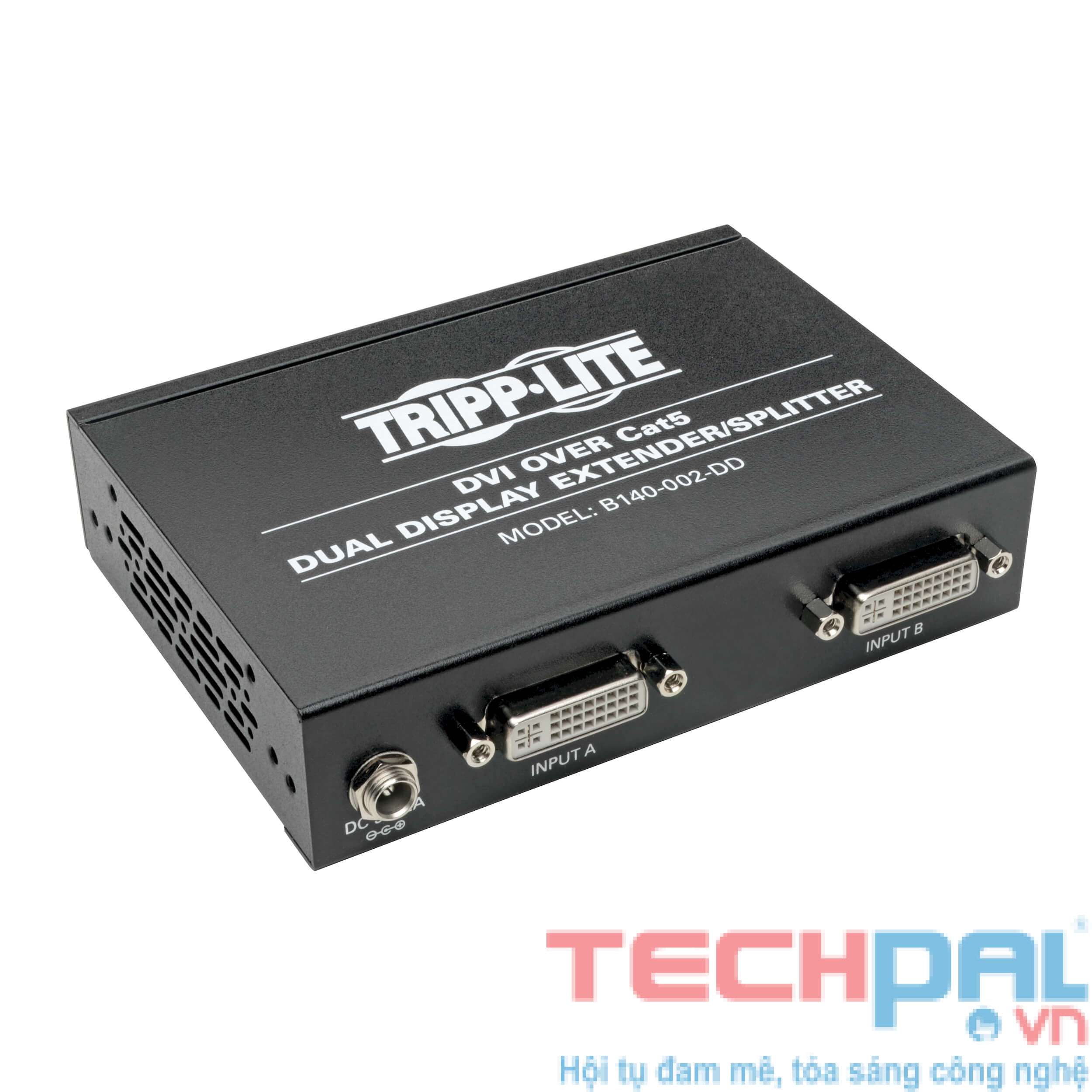

Model: B140-002-DD
Manufacturer: Tripp Lite
Description: 2-Port DVI over Cat5/6 Splitter/Extender, Box-Style Transmitter for Video, Dual-Display DVI-D, 200 ft. (60 m), TAA
The B140-002-DD splits two PC DVI source video signals to two remote monitors. Passive, non-powered receivers allow distances up to 50 feet (15.2 meters) at 1920 x 1200 resolution, or 100 feet (30.5 meters) at 1024 x 768 resolution, over solid conductor Cat6 cable. Active, powered receivers extend the distance to 150 feet (45.7 meters) at 1920 x 1200 and 200 feet (61 meters) at 1024 x 768 (receivers purchased separately). Additional monitors can be daisy-chained (up to three) on each channel, allowing four monitors per channel, by using the B140-110 Repeater/Extender (sold separately). N202-Series Cat6 cables are designed specifically for these types of devices…pre-terminated, solid conductor Cat6 Ethernet cables up to 200 feet. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Features:
– Split and extend Dual DVI signals from a computer to two sets of Dual Displays
– 1920 x 1200 (60Hz) resolution up to 150-ft. (45.72 m)
– Up to 4 displays per channel when using repeaters
– Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Product Datasheet
Owner’s Manual for B140-002-DD Extender / Splitter (English)
Technology: DVI; Cat5/5e; Cat6
Host Connector: HD15 (FEMALE)
Number of Displays: 2
Number of Ports: 2
AC Power Adapter Input: 100-240V / 50/60Hz / 0.5A
AC Power Adapter Output: 5V / 2A
Operating Temperature Range: 32° to 104°F (0° to 40°C)
Storage Temperature Range: 5° to 122°F (-15° to 50°C)
Relative Humidity: 0% to 85%, Non-Condensing
Shipping Dimensions: 2.17 x 8.43 x 6.46 (hwd / in.)
Shipping Weight: 1.54lbs
