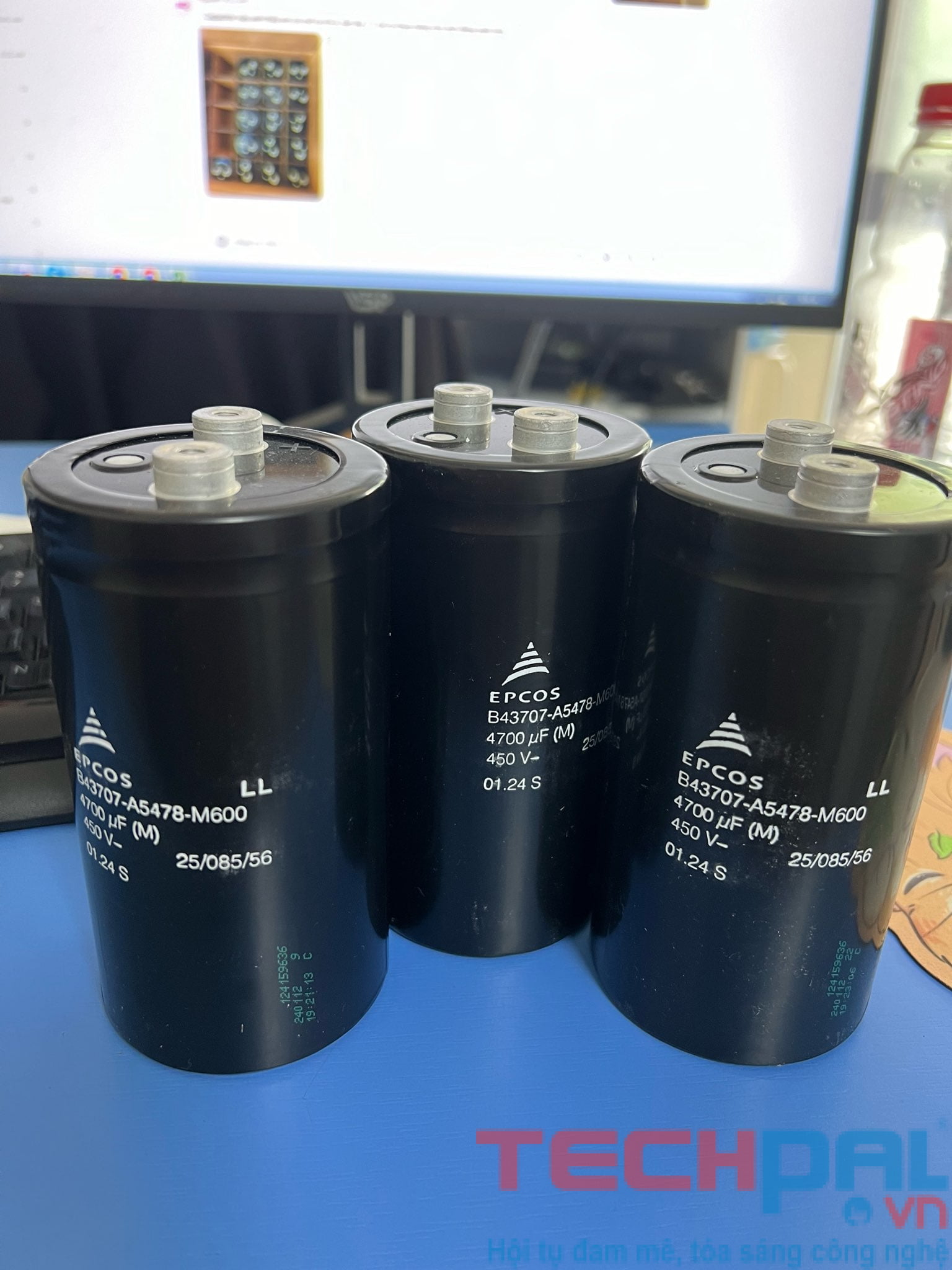

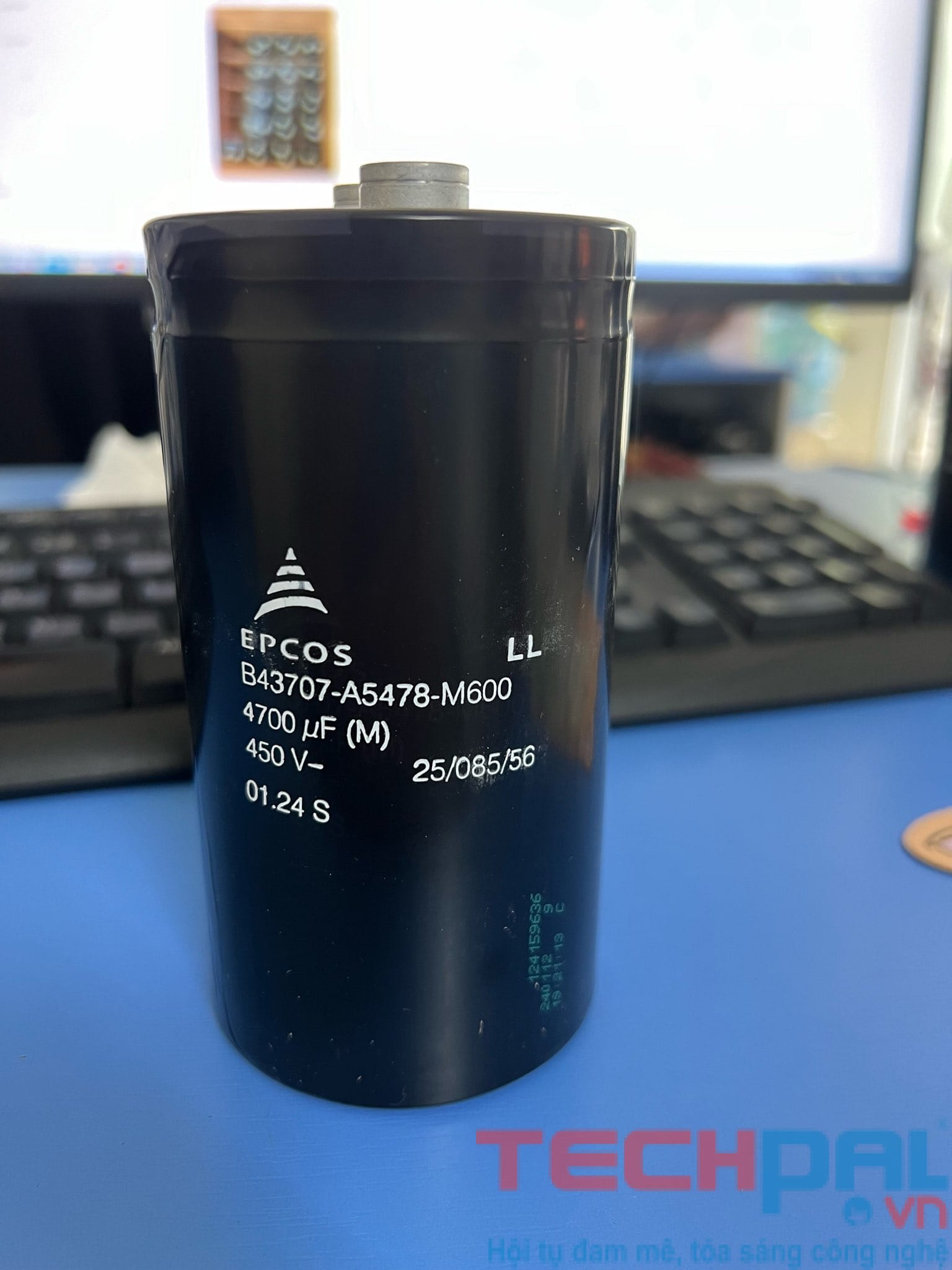

Model: B43707A5478M600
Manufacturer: EPCOS – TDK Electronics
Description: 4700µF 450V Aluminum Electrolytic Capacitors Radial, Can – Screw Terminals 24mOhm @ 100Hz 12000Hrs @ 85°C
EPCOS / TDK B437x7 Ultra Compact Aluminum Capacitors offer a 400VDC voltage rating and 1800µF to 22,000µF capacitance range with a B43727 threaded stud-mount termination style available. These ultra-compact capacitors use an all-welded construction that ensures reliable electrical contact and come in a 51.6mm to 90mm diameter range. EPCOS / TDK B437x7 Ultra Compact Aluminum Capacitors are ideal for solar inverters, professional power supplies, and uninterruptible power supply (UPS) applications.
Mounting Type: Chassis Mount
Termination Style: Screw
Package / Case: Radial, Can – Screw Terminals
Polarization: Polar
Capacitance: 4700µF
Tolerance: ±20%
Voltage – Rated: 450V
ESR (Equivalent Series Resistance): 24mOhm @ 100Hz
Lifetime @ Temp.: 12000Hrs @ 85°C
Ripple Current @ Low Frequency: 13.8A @ 100Hz
Impedance: 40mOhms
Operating Temperature: -40°C ~ 85°C
Lead Spacing: 1.122″ (28.5mm)
Size / Dimension: 2.531″ Dia (64.3mm)
Height – Seated (Max): 4.693″ (119.2mm)
Unit Weight: 1.124lbs
