Model: BPI-FPGA
Manufacturer: Banana PI
Description:

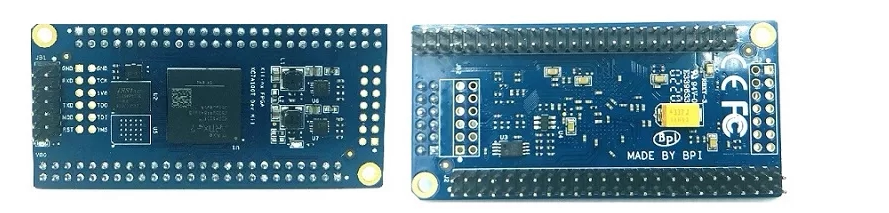

FPGA Module with Xilinx Artix-7 100T (Variant 2D), 2 x 50 Pin, 1.8V only supply
Now with the Trenz Electronic TE0725LP-01-100-2D is a low cost small-sized FPGA module integrating a Xilinx Artix-7 (15T-100T) and 32 MByte Flash memory for configuration and operation. The 2 x 50 pin headers with a 2.54 mm standard pitch are perfect for breadboard or low cost dual layer PCB.
Trenz HyperBus enabled reference designs are typically bundled with a FREE evaluation edition of the commercially proven, low-cost, low-circuit area, high performance, HyperBus Memory Controller (HBMC) IP supplied by Synaptic Laboratories Ltd. Synaptic Labs HBMC IP is commercially proven in both Intel and Xilinx projects, and was selected by Intel. This FREE HBMC IP evaluation license never expires, and no customer registration or NIC ID is required. You can check for and obtain the latest version of the FREE evaluation HBMC IP from S/Labs website for Xilinx and Intel.
Key Features:
– Xilinx Artix-7 XC7A100T-2CSG324C/XC7A100T-2CSG324I
– Commercial temperature grade (industrial on request)
– 32 MByte Flash memory
– 2 x 50 pin headers with 2.54 mm pitch, ideal for breadboard use
– 1.8 V single supply with on board voltage regulators
– 95 I/O’s (42 + 42 + 3 + 8)
– 25 MHz system clock (100 MHz can be customized on request)
– I2C EEPROM
– 7.3 x 3.5 cm form factor
– JTAG/UART connector
– One user LED
– optional HyperRAM (8 bis 32 MByte) or HyperFlash
