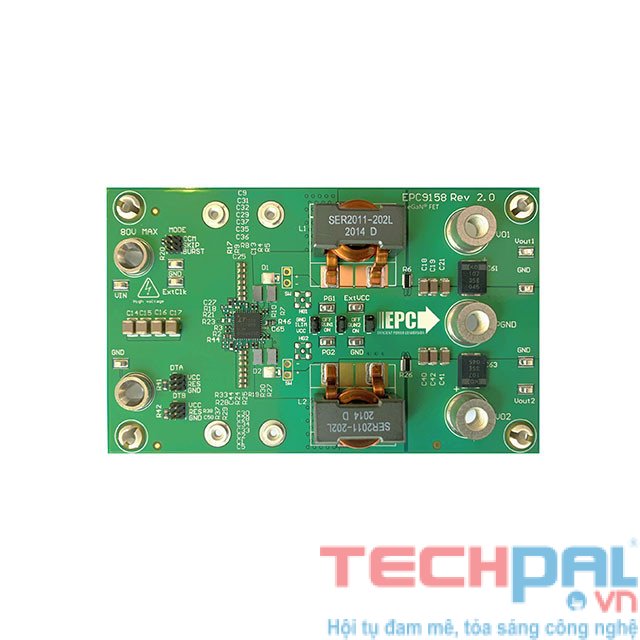

Model: EPC9158
Manufacturer: EPC
Description: 48 V/54 V Input to 12 V, 50 A Output Dual-Phase Synchronous Buck Converter Reference Design Board
The EPC9158 is a 48 V/54 V to 12 V synchronous buck converter and can deliver 25 A per phase or 50 A total when configured for a single output. EPC9158 features EPC2218 enhancement mode eGaN® FET and LTC7890 two phase analog buck controller with integrated eGaN drivers.
Features:
– High efficiency: 96.5% with 48 V input and 12 V output configuration
– Switching frequency: 500 kHz
– Current mode control
– Reconfigurable light load operating mode and adjustable dead time
– Operating modes and other functions: UVLO; Overcurrent protection; Power good; External synchronization
Board Type: Fully Populated
Main Purpose: DC/DC, Step Down
Regulator Topology: Buck
