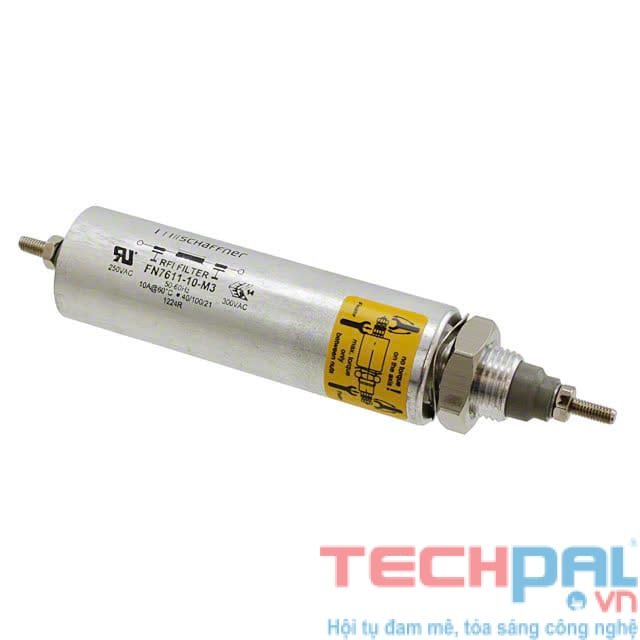

Model: FN7611-10-M3
Manufacturer: Schaffner EMC Inc.
Description: LC (Pi) EMI Filter 3rd Order Low Pass 1 Channel L = 70nH, C = 10000pF 10 A Axial – Threaded Terminals
Type: Low Pass
Mounting Type: Bolt Mount
Package / Case: Axial – Threaded Terminals
Filter Order: 3rd
Technology: LC (Pi)
ESD Protection: No
Number of Channels: 1
Resistance – Channel (Ohms): 0.0012
Current: 10A
Voltage – Rated: 1000V (1kV)
Values: L = 70nH, C = 10000pF
Operating Temperature: -40°C ~ 100°C
Size / Dimension: 0.787″ Dia x 2.717″ L (20 x 69mm)
