Model: FR-DCMG series
Manufacturer: Fonrich
Description: INTELLIGENT COMBINER BOX MONITORING MODULE
1000V~1700V Combiner Box Monitoring
A Gilgal 3 combiner box monitoring system supports 1000V/1700V PV systems, real-time monitoring of the string current, bus voltage, bus box temperature, switch status, and alarm output when abnormal data is obtained. The system supports RS485 or industrial wireless data transmission for data transmission.
Features:
– Supports up to 32 channels
– Local LED display, real-time display of photovoltaic string information
– You can view the total power generation of each string
– RS485 or PLC communication
– Various specifications of Hall sensors, ±20A, ±30A, ±40A, ±60A
– Optional: Support shunt release

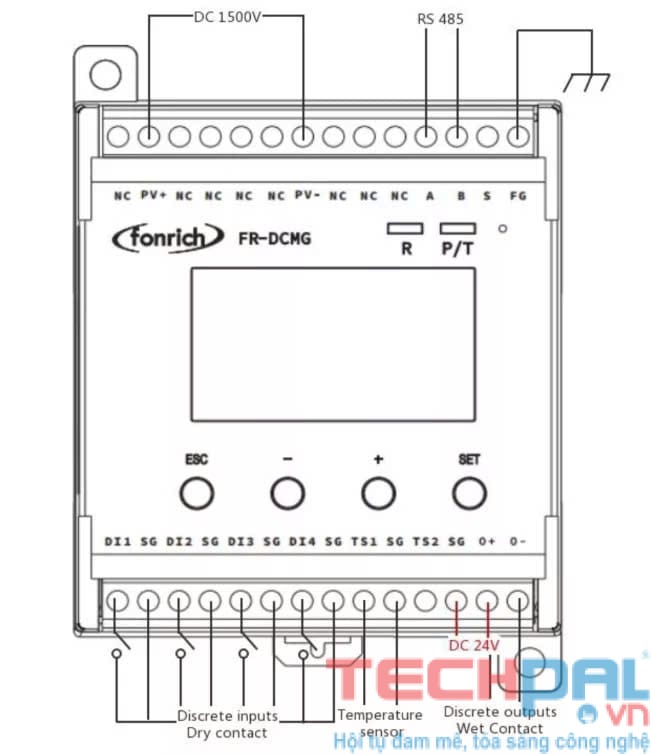

Monitoring Module Wiring Diagram
Selection Table
| Combiner Box Monitoring-Main Controller | |||||||||
| Model | Photovoltaic voltage | Power supply | Shunt trip | Communicate | Current monitoring string | Digital/switch status monitoring | Temperature Sensor | ||
| Photovoltaic converter integration |
24V DC | RS485 | Programmable Controllers | ||||||
| FR-DCMG-MMPD | ≤1200v | Yes | – | – | Yes | – | 24 | 2 | 1 |
| FR-DCMG-MMPU | ≤1500v | Yes | – | – | Yes | – | 24 | 4 | 2 |
| FR-DCMG-MMPL | ≤1500v | Yes | – | – | Yes | Yes | 24 | 4 | 2 |
| FR-DCMG-MMPP | ≤1500v | Yes | – | Yes | Yes | Yes | 24 | 4 | 2 |
| FR-DCMG-MMPQ | ≤1700v | Yes | – | – | Yes | – | 24 | 4 | 2 |
| FR-DCMG-MMPZ | ≤1700v | Yes | – | Yes | Yes | Yes | 24 | 4 | 2 |
| FR-DCMG-MMPS | ≤1700v | – | Yes | Yes | Yes | – | 24 | 4 | 2 |
| FR-DCMG-MMPY | ≤1500v | Yes | – | – | Yes | – | 32 | 4 | 2 |
FR-DCMG Application Diagram

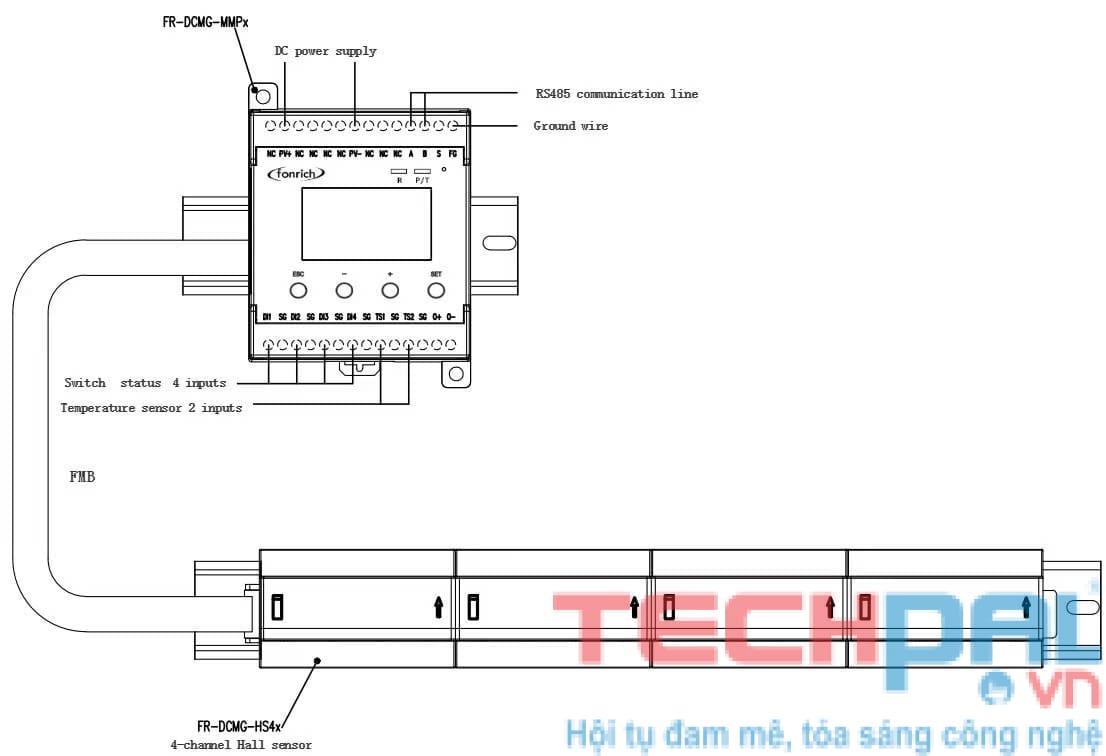

Typical Wiring Diagram
|
Classification
|
Item
|
Parameter
|
|
Voltage measurement
(FR-DCMG-MMPU, FR-DCMG-MMPY, FR-DCMG-MMPP) |
Input voltage range
|
450~+1500V
|
|
Voltage measurement accuracy
|
0.5%
|
|
|
Voltage resolution
|
1V
|
|
|
Temperature drift
|
≤0.1V/℃
|
|
|
Temperature
measurement |
Quantity of temperature input
|
Two inputs
|
|
Sensor type
|
NTC
|
|
|
Measurement range
|
-40℃~+125℃
|
|
|
Measurement accuracy
|
±2℃
|
|
|
Temperature resolution
|
0.1℃
|
|
|
Monitor switch status
|
Input quantity of switch status
|
Four inputs
|
|
Input type
|
Dry Contact Input
|
|
|
Input Voltage
|
DC 5V
|
|
|
Local Display
|
Display voltage,
current,temperature, etc |
Dot matrix display (LCD)
|
|
Working status indicator
|
2 LED, Represents power supply and communication status respectively
|
|
|
Local operation
|
Operation content
|
Operation status display and parameter
setting |
|
Keys of local operation
|
4
|
|
|
RS-485
|
Communication protocol
|
Modbus-RTU
|
|
Communication rate
|
2400/4800/9600/19200/38400 bps
|
|
|
Byte format
|
8N1, 8O1, 8E1
|
|
|
Break Shunt Trip
(only for FR-DCMG- MMPP) |
Drive voltage
|
24V
|
|
Drive capability
|
80W * 10ms
|
|
|
Main control module
power supply parameters (FR-DCMG-MMPU FR-DCMG-MMPY FR-DCMG-MMPP) |
Input voltage
|
450~1500VDC
|
|
Maximum of input current
|
0.1A
|
|
|
Power dissipation
|
<10W
|
|
|
Main control module
power supply parameters (FR-DCMG-MMPQ) |
Input voltage
|
450~1700VDC
|
|
Maximum of input current
|
0.1A
|
|
|
Power dissipation
|
<10W
|
|
|
Main control module
power supply parameters (FR-DCMG-MMPS) |
Input voltage
|
24VDC
|
|
Maximum of input current
|
0.1A
|
|
|
Power dissipation
|
<10W
|
|
|
Environment
|
Work Ambient Temperature
|
-30℃ ～ +70℃
|
|
Storage temperature
|
-40℃ ～ +85℃
|
|
|
Operating humidity
|
0～95%
|
|
|
Mechanical
properties |
Terminal torque
|
Minimum torque 2kgf.cm
|
|
Standard torque 4kgf.cm
|
||
|
Maximum torque 5.1kgf.cm
|
||
|
EMC
|
Please refer to dedicated EMC/EMS testing report
|
|
