Model: ISO224EVM
Manufacturer: Texas Instruments

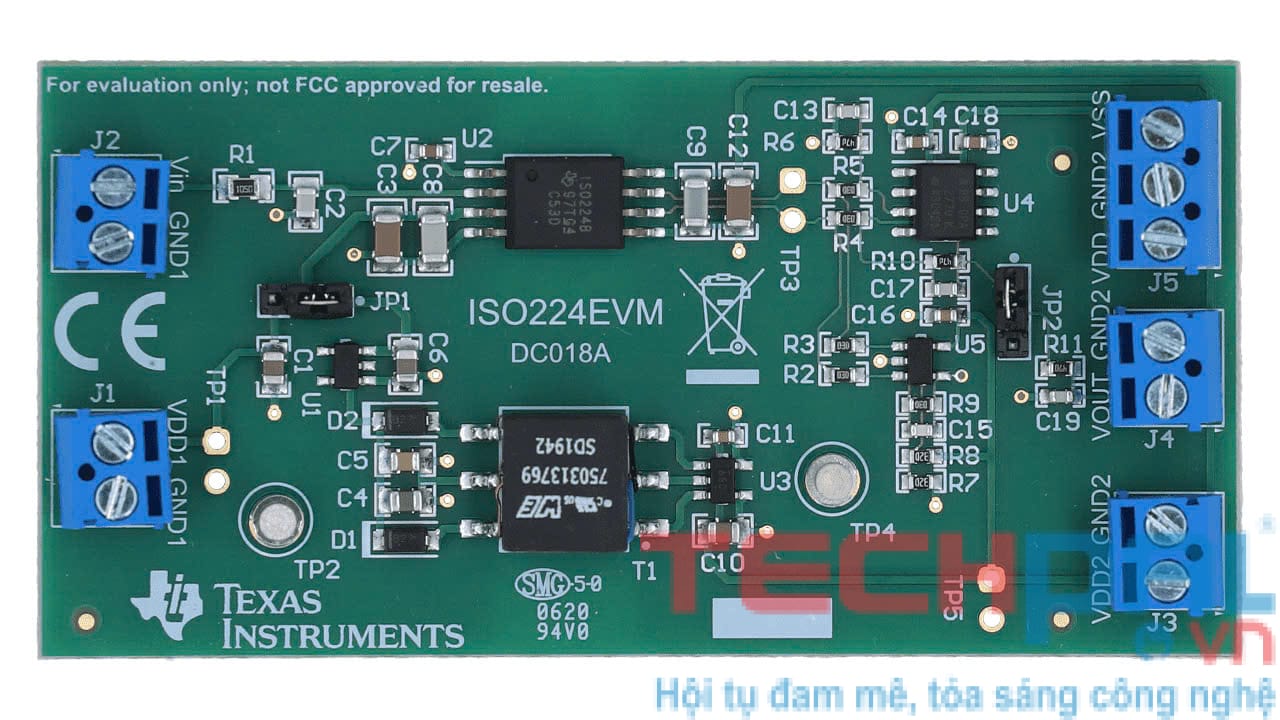

Description: ISO224 1 – Single Channels per IC Isolation Amplifier Evaluation Board
The ISO224 evaluation module (EVM) is an evaluation platform for ISO224, which is a 7-kV reinforced isolation amplifier designed for use in voltage-measuring applications. ISO224EVM allows the user to explore all the features of the ISO224 device. ISO224EVM also features a bipolar and unipolar differential to single-ended output stage.
Features:
– Reinforced isolation amplifier: 7-kV peak, 10-kV surge
– Fixed gain of 0.25
– ±12-V input range
– Low gain error and drift
– Extended industrial temperature range
Channels per IC: 1 – Single
Amplifier Type: Isolation
Output Type: Differential
Board Type: Fully Populated
Slew Rate: 2V/µs
Current – Output / Channel: 18mA
Current – Supply (Main IC): 6.5mA
Voltage – Supply, Single/Dual (±): 4.5V ~ 18V
Unit Weight: 5.783519oz
