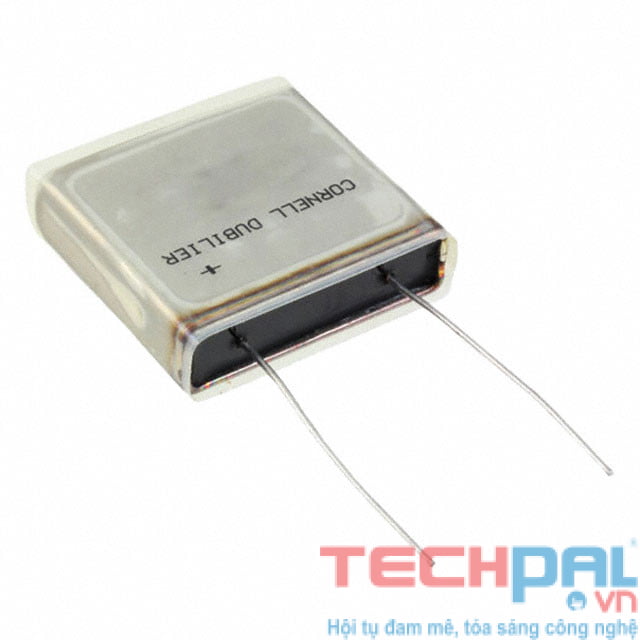

Model: MLS221M250EK1C
Manufacturer: Cornell Dubilier Electronics (CDE)
Description: 220µF 250V Aluminum Electrolytic Capacitors FlatPack 597mOhm @ 120Hz 10000 Hrs @ 85°C
Cornell Dubilier (CDE) MLS Flatpack Aluminum Electrolytic Capacitors extend the performance of the MLP series from a maximum operating temperature of +85°C to +125°C. These ultra-long life devices incorporate a rugged, stainless steel case that ensures flatness to beyond +125°C. Other features include a near-hermetic welded seal, a 100-year expected operating lifespan, and a 220µF to 4700µF capacitance range. The component also withstands more than 80,000 feet of altitude. CDE MLS Aluminum Electrolytic Capacitors are ideal for high-reliability military systems and applications operating above +85°C.
Package / Case: FlatPack
Polarization: Polar
Tolerance: ±20%
Capacitance: 220uF
Voltage – Rated: 250V
ESR (Equivalent Series Resistance): 597mOhm @ 120Hz
Lifetime @ Temp.: 10000 Hrs @ 85°C
Ripple Current @ Low Frequency: 4.1A @ 120Hz
Ripple Current @ High Frequency: 5.1A @ 20kHz
Leakage Current: 2nA
Lead Spacing: 1.000″ (25.4mm)
Operating Temperature: -55°C ~ 125°C
Size / Dimension: 1.50″ L x 1.75″ W (38.10 x 44.45mm)
Height – Seated (Max): 0.5″ (12.7mm)
