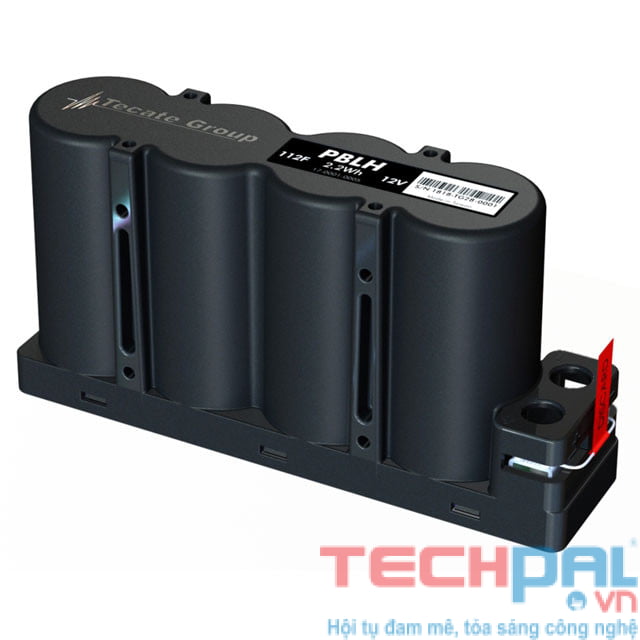

Model: PBLH-12R0/112ST
Manufacturer: Tecate Group
Description: 112 F (EDLC) Supercapacitor 12 V Module 20mOhm @ 1kHz 1500 Hrs @ 65°C
Features:
– Passive cell balancing
– Rugged, fully enclosed system
– Screw terminals
– UL-recognized cells
Mounting Type: Chassis Mount
Termination: Screw Terminals
Capacitance: 112F
Voltage – Rated: 12V
ESR (Equivalent Series Resistance): 20mOhm @ 1kHz
Lifetime @ Temp.: 1500Hrs @ 65°C
Operating Temperature: -40°C ~ 65°C
Dimension: 6.614″ L x 1.654″ W (168 x 42mm)
Height – Seated (Max): 3.543″ (90mm)
