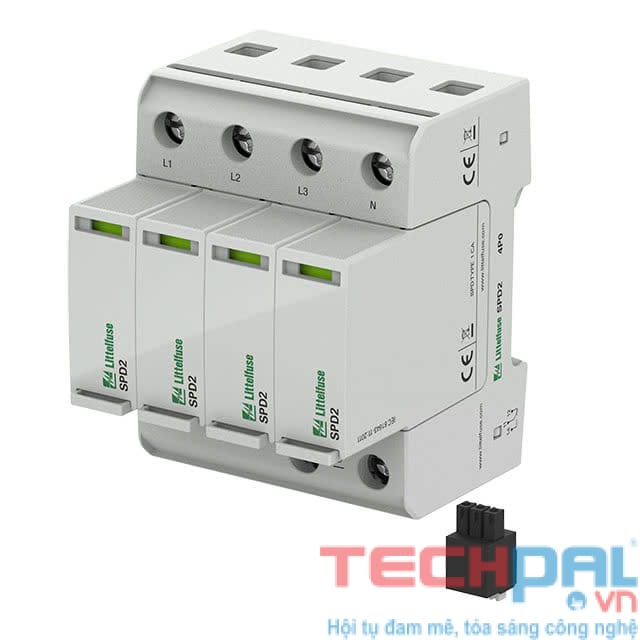

Model: SPD2-550-4P0-R
Manufacturer: Littelfuse Inc.
Description: Industrial Surge Protectors MULTI POLE 480V 20kA 4+0 Configuration
Type: Type 1, Type 2
Mounting Type: DIN Rail
Form: Base + Module
Number of Poles: 4
Voltage – Continuous Operating (Max) (MCOV): 550VAC
Current – Discharge (Nom) (8/20µS): 20kA
Current – Discharge (Max) (8/20µS): 50kA
Current – Short Circuit Rating (SCCR): 200kA
Voltage – Protection Rating (VPR): 2kV
Voltage – Protection Level (VP) (2416): 2.5kV
Operating Temperature: -40°C ~ 80°C
