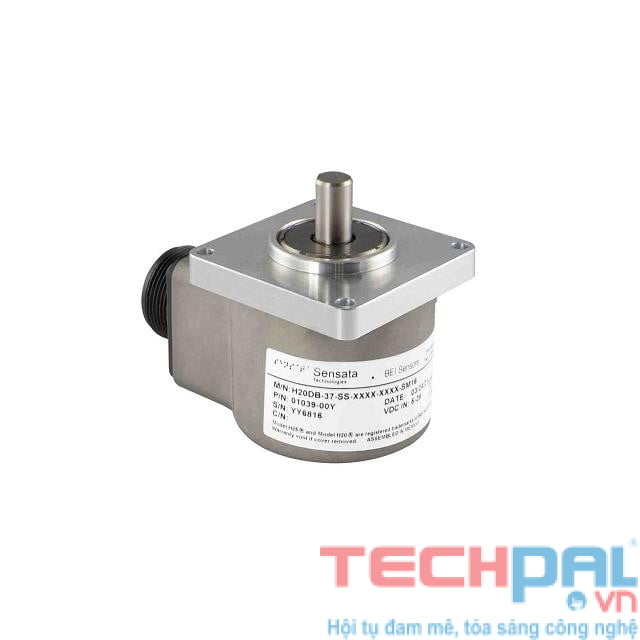

Model: 01039-2918
Manufacturer: Sensata-BEI Sensors
Description: Encoder, Incremental, Optical, 5-28Vin/out, 0.374″ Shaft, 300 Cycles/turn, 2 Channel
The Model H20 is a compact encoder designed to economically fill the resolution range up to 10,000 cycles per turn. This compact unit features a precision disc, precision ball bearings and EMI shielding. The encoder meets IP66 sealing requirements when ordered with the shaft seal and one of the available connectors.
Features:
– Compact size to fit in tight installations
– Well-sealed for dusty and wet environments
– Shielded against EMI
– Reverse voltage protection
– Over voltage protection
– Output protection diode
– Any resolution from 1 to 10000 is available
Encoder Type: Optical
Output Type: Quadrature (Incremental)
Actuator Type: Shaft
Mounting Type: Chassis Mount
Termination Style: Connector
Orientation: User Selectable
Number of Channels: 2 Channel
Pulses per Revolution: 300
Voltage – Supply: 5V ~ 28V
Rotational Life (Cycles Min): 1.5B
Detent: No
Built in Switch: No
Operating Temperature: 0°C ~ 70°C
Shaft Diameter: 0.375in
Shaft Length: 0.88in
IP Rating: IP66
Unit Weight: 9.008088oz
