Encoder – Bộ mã hóa xung

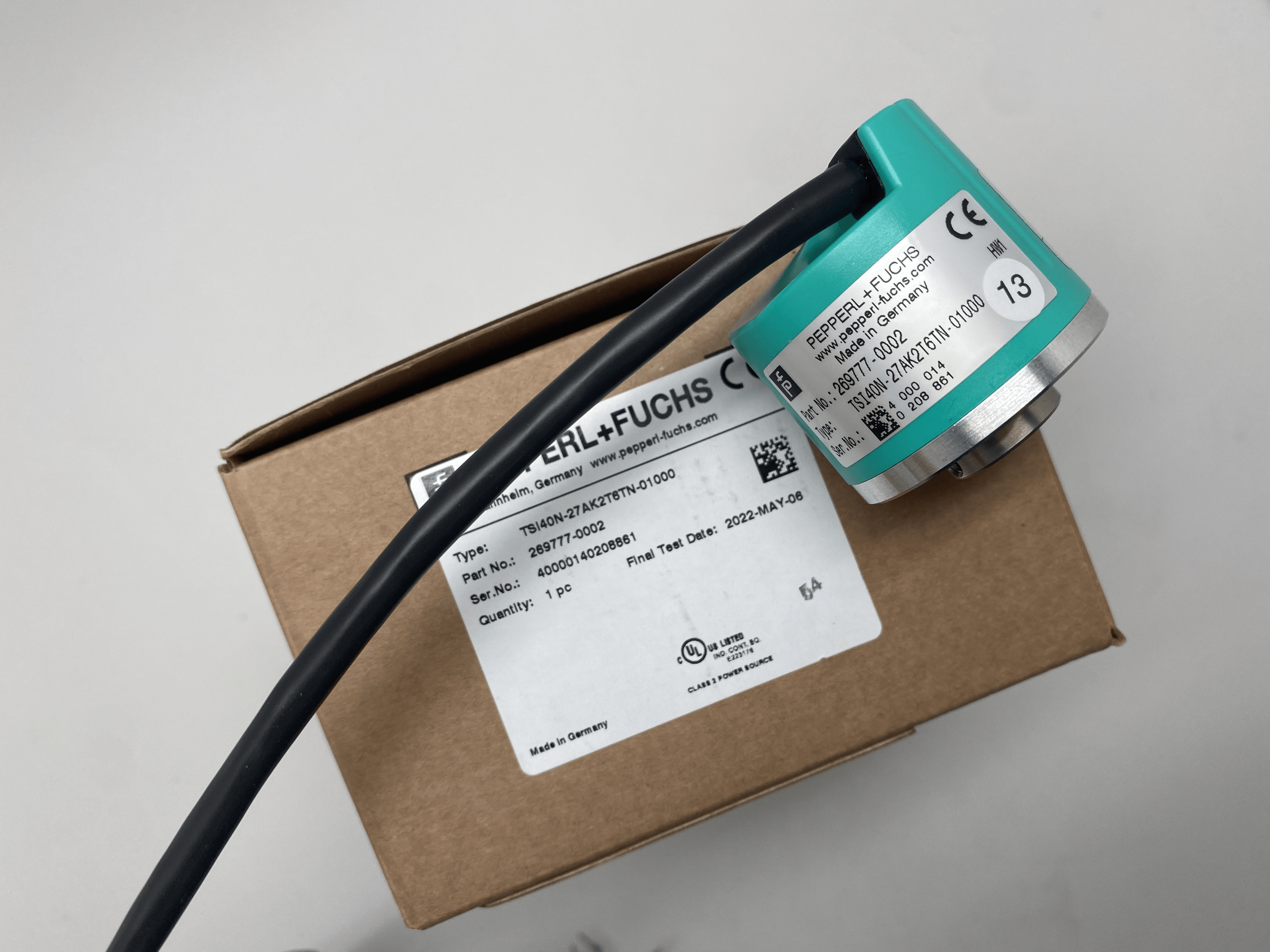

Model: TSI40N-27AK2T6TN-01000
Hãng: Pepperl Fuchs
Liên hệ báo giá: Mr. Luân – 0366.152.888 (Phone/Zalo)
Cần báo giá 1 số model khác vui lòng liên hệ:
- TVI40N-09TK2T6TN-00360
- TVI40N-09TK0T6TN-01024
- TVI40N-09TK0T6TN-00360
- TVI40N-09TK2T6TN-01024
- TVI40N-09TK0T6TN-00500
- TVI40N-09TK0T6TN-00100
- TSI40N-27AK2T6TN-01000
Incremental rotary encoderTSI40N
Technical Data
General specifications
Detection type photoelectric sampling
Pulse count max. 1024
Electrical specifications
Operating voltage UB 4.75 … 30 V DC
5 V DC for RS-422
No-load supply current I0 max. 55 mA
Output
Output type push-pull, incremental or RS-422, incremental
Voltage drop Ud ≤ 2.5 V (< 2.5 V)
Load current max. per channel 30 mA , short-circuit protected (max. per channel 20 mA,
conditionally short-circuit proof)
Output frequency max. 100 kHz (max. 100 kHz)
Rise time 980 ns (225 ns)
De-energized delay toff 980 ns (225 ns)
Connection
Cable ∅6 mm, 8 x 0,128 mm2
connection with plug M12, 8-pin, L = 0.2 m
Standard conformity
Degree of protection DIN EN 60529, IP54
Climatic testing DIN EN 60068-2-3, no moisture condensation
Emitted interference EN 61000-6-4:2007/A1:2011
Noise immunity EN 61000-6-2:2005
Shock resistance DIN EN 60068-2-27, 100 g, 6 ms
Vibration resistance DIN EN 60068-2-6, 10 g, 10 … 2000 Hz
Approvals and certificates
UL approval cULus Listed, General Purpose, Class 2 Power Source
Maximum permissible ambient temperature max. 60 °C (max. 140 °F)
Ambient conditions
Operating temperature -10 … 70 °C (14 … 158 °F)
Storage temperature -25 … 85 °C (-13 … 185 °F)
Mechanical specifications
Material
Housing Polycarbonate
Flange 3.1645 aluminum
Shaft Stainless steel 1.4305 / AISI 303
Mass approx. 180 g
