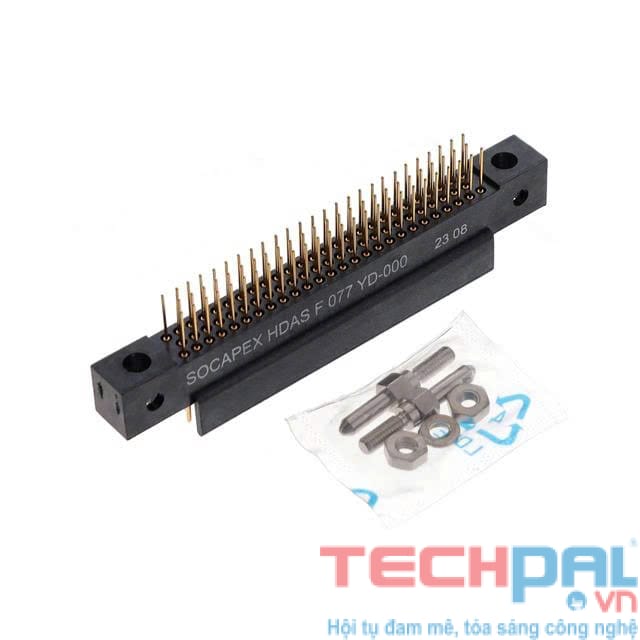

Model: HDASF077YD-000
Manufacturer: Amphenol Aerospace Operations
Description: Connector Header Through Hole 77 position 0.075″ (1.91mm)
Connector Type: Header
Contact Type: Male Pin
Pitch – Mating: 0.075″ (1.91mm)
Number of Positions: 77
Number of Rows: 3
Row Spacing – Mating: 0.075″ (1.91mm)
Number of Positions Loaded: All
Style: Board to Board or Cable
Shrouding: Shrouded – 2 Wall
Mounting Type: Through Hole
Termination: Solder
Fastening Type: Threaded
Contact Length – Post: 0.264″ (6.71mm)
Contact Shape: Circular
Contact Finish – Mating: Gold
Contact Finish Thickness – Mating: 39.4µin (1.00µm)
Contact Finish – Post: Gold
Contact Material: Copper Alloy
Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
Features: Mating Flange, Mounting Flange
Operating Temperature: -65°C ~ 150°C
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Current Rating (Amps): 4.5A per Contact
Voltage Rating: 750V
