Model: KIT38082
Manufacturer: Amphenol Socapex
Description: Jack Modular Connector 8p8c (RJ45, Ethernet) Straight Shielded
Amphenol Socapex RJF TV Ethernet Connectors allow using an Ethernet Class D/Cat 5e, Cat6, and Cat6A connection for 10 BaseT, 100 BaseTX, or 1000 BaseT networks in harsh environments. These connectors are sealed against fluids and dust (IP68) and have an operating temperature range of -40°C to +85°C. The RJF TV connectors resist shock, vibration, and traction. The metallic plug is connected to a receptacle using a tri-start thread coupling mechanism (MIL-DTL-38999 Series III Type) with an anti-decoupling device for high-vibration applications.

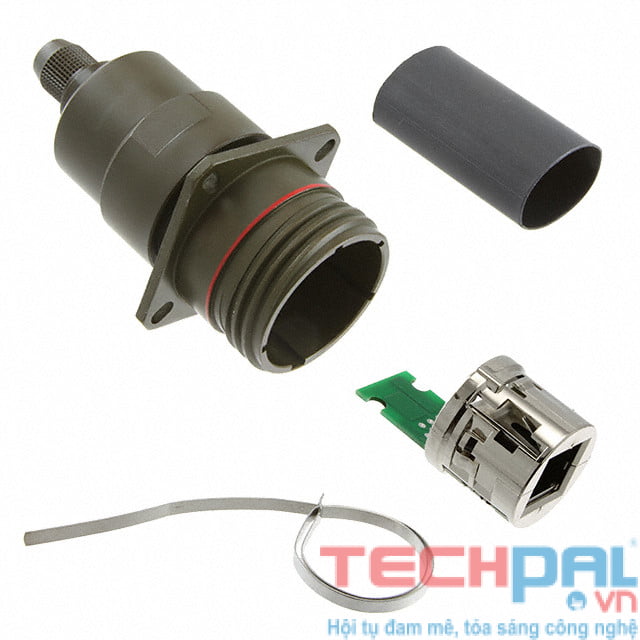

The KIT38082 is a RJ45 square flange Receptacle Kit with olive drab cadmium plating, EMI backshell provides a solution with 360° shielding, same protection than the one proposed by standard MIL-DTL-38999 series III connectors. With those solutions recommend using reinforced and double shielded Cat5E, Cat6 or Ca6A cable.
Connector Type: Jack
Mounting Type: Panel Mount, Square Flange
Orientation: Straight
Termination: PC Board, Solder
Shielding: Shielded
Number of Positions/Contacts: 8p8c (RJ45, Ethernet)
Number of Ports: 1
Number of Rows: 1
Gender: Jack (Female)
LED Color: Does Not Contain LED
Locking Mechanism: Threaded
Coupling Mechanism: Threaded
Flammability Rating: UL 94 V-0
Ingress Protection: IP68 – Dust Tight, Waterproof
Tab Direction: User Selectable
Operating Temperature: -40°C ~ 85°C
Product Dimensions: 36.53 x 36.53mm
Unit Weight: 2.257534oz
