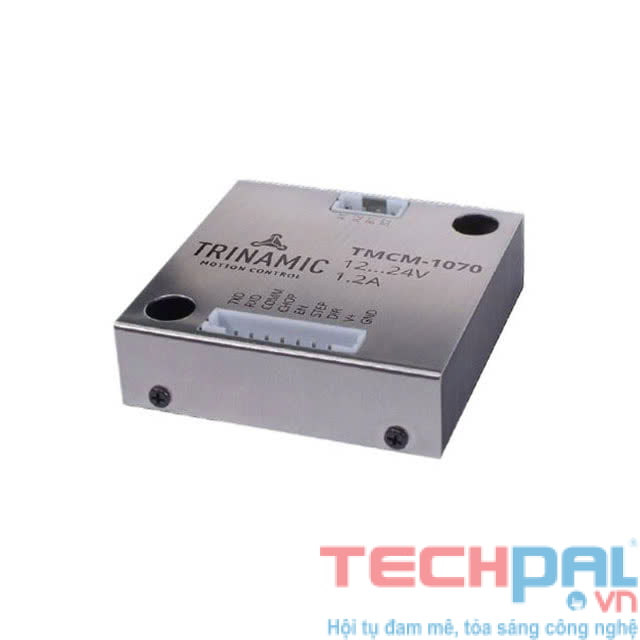

Model: TMCM-1070
Manufacturer: Analog Devices Inc./Maxim Integrated
Description: Stepper motor driver module 9 to 24V, 1.2A, 256 µSteps, with S/D and Uart Interface, StallGuard, CoolStep and StealthChop
The TMCM-1070 is a single axis stepper motor controller/driver module for sensorless load dependent current control. The device is powered by ADI Trinamic SpreadCycle™ chopper and StealthChop™ technology. The TMCM-1070 is capable of driving up to 1.4A of current from each output (with proper heatsinking). It is designed for an operating voltage of 9 to 24V. The device provides a S/D interface and permanent parameter storage via TMCL™-IDE for configuration.
All you need to get started is a power supply and ADI Trinamic’s free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data.
Features:
– Supply Voltage +9 to +24V DC
– Step and direction interface
– MicroPlyer™ to 256 µ-steps
– StealthChop™ silent PWM mode
– SpreadCycle™ smart mixed decay
– StallGuard2™ load detection
– CoolStep™ autom. current scaling
– UART configuration interface
TMCM-1070 Hardware Manual
TMCM-1070 TMCL Firmware Manual
Type: Module
Motor Type: Stepper
Control / Drive Type: Stepper, Bipolar
Mounting Type: Chassis Mount
Interface: Step / Direction
Number of Motors: 1
Current – Output: 1A
Voltage – Supply: 10 ~ 24VDC
Operating Temperature: -30°C ~ 40°C
Unit Weight: 1.164041oz
